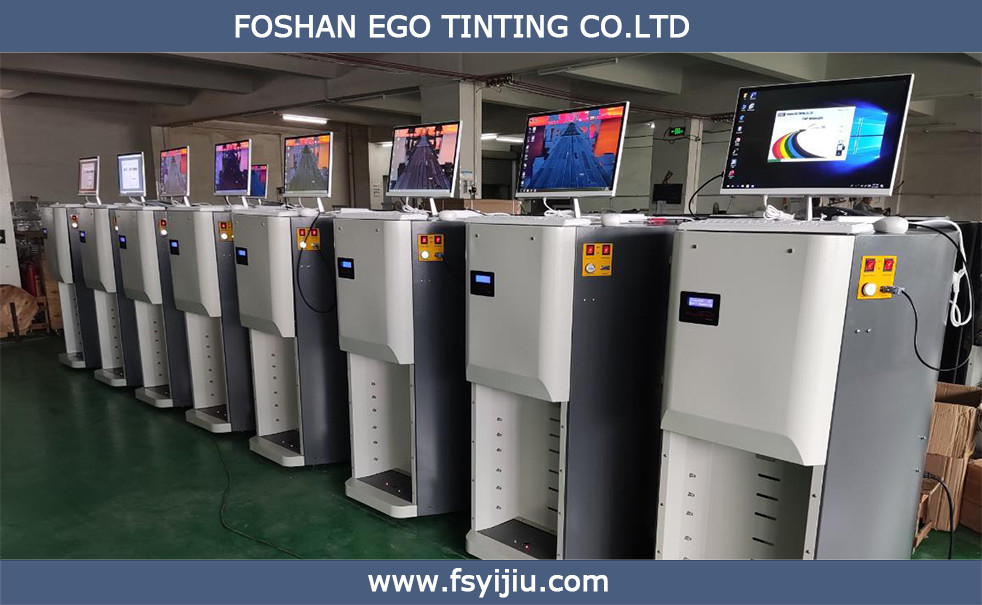

Computer Paint Tinting Dispenser Color Mixing Machinery

Computer Paint Tinting Dispenser Color Mixing Machinery
Computer Paint Tinting Dispenser Color Mixing Machinery

Large Image :  Computer Paint Tinting Dispenser Color Mixing Machinery

Product Details:
Place of Origin: CHINA
Brand Name: EGO
Certification: CE
Model Number: YJ-1A-16D
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: Carton , packing size: 740 (L) X 850(W) X 1320(H) MM , a 20ft can put in 20 sets
Delivery Time: 30 days
Payment Terms: TT
Supply Ability: 50 SETS PER MONTH
Detailed Product Description
Machine Name: Computer Paint Tinting Dispenser Color Mixing Machine Pump Type: Piston
Number Of Canisters: 16 Plastic Canisters In 2.3L Maximal Dispensing At One Time:: 50 ML
Flow Rate:: 250ML Minimum Dispensed Quantity:: 1/384 Y Or 0.077 ML
Machine Dimension: 665(L)*750(W)*1210(H) MM Net Weight: 112KG
Power (kW): 0.15 KW
High Light:

Computer Paint Tinting Dispenser

,

Color Mixing Paint Tinting Dispenser

Computer Paint Tinting Dispenser Color Mixing Machinery YJ-1A-16D for paint shop







Brief introduction


The Computer Paint Tinting Dispenser Color Mixing Machinery YJ-1A-16D is an affordable tinting machine designed to meet high standards for accuracy, repeatability and speed, it's a economical paint dispenser for paint shop.


Features for Computer Paint Tinting Dispenser Color Mixing Machinery


  • Customer can provide us formula table in Excel format, we help to import the formula data into our tinting system.
  • Our software use the same Flink.dat file as CPS/Hero/Lenteq/ Innovatint and Formula.txt file as LARGOTINT, TECMEC , it’s compatible with worldwide major color software.
  • Ideal automatic dispensing solution for small to medium retail environment

  • Piston pump technology

  •  Ergonomically designed for ease of operations

  • Compatible with universal, water-based colorants

  • Up to 16 circuits can be accommodated



Technical Data for Computer Paint Tinting Dispenser Color Mixing Machinery


 FEATURES **
Application Water-based,  universal
Valve seal ring type Silicone
Dispensing technology Volumetric sequential dispensing
Piston Pump Capacity 50 ML
Canister quantity 16 Plastic canisters
Canister inner diameter  90mm
Canister Volume 2.3L
Dispensing speed [l/min] 0,25 L/min
Minimum dispensed quantity [fl.oz.] 1/384 fl.oz. (0,077ml)
CAN TABLE SIZE **
Length / Depth/ Maximum can heigh 35 CM / 31 CM / 57CM
POWER SUPPLY / MACHINE ENVIRONMENT **
Voltage 220 / 110 V -- 50 / 60 HZ
Rated power 150 W
MACHINE AND PACKING SIZES **
Machine Size (Lx W x H) 665  X 750 X 1210  MM
Packing Size (Lx W x H) 740 X 850  X 1320  MM
Footprint 0,50 m2
WEIGHT **
Machine Weight 114 KG
Gross Weight  127 KG
LOADING QUANTITY ** 21 sets / 20" Container
PACKING ** Carton
CERTIFICATE** CE



Computer Paint Tinting Dispenser Color Mixing Machinery 0
