Piston pump Emulsion Paint Tinting and Mixing Machine Wall Paint Tinter Machine 0.25L/min

China Piston pump Emulsion Paint Tinting and Mixing Machine Wall Paint Tinter Machine 0.25L/min supplier

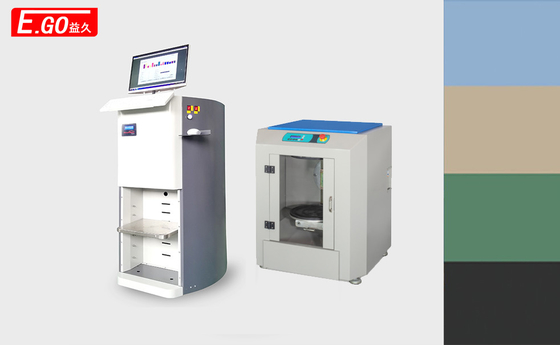

Large Image :  Piston pump Emulsion Paint Tinting and Mixing Machine Wall Paint Tinter Machine 0.25L/min

Product Details:

Place of Origin: CHINA
Brand Name: EGO
Certification: CE
Model Number: YJ-1A-16D and YJ-2A-03

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: Carton , packing size: 740 (L) X 850(W) X 1320(H) MM , a 20ft can put in 20 sets
Delivery Time: 30 days
Payment Terms: TT
Supply Ability: 50 SETS PER MONTH
Contact Now
Detailed Product Description
Model No: YJ-1A-16D & YJ-2A-03 Pump Technology: Piston
Dispensing Speed: 0,25 L Per Min Minimum Dispensed Quantity: 0,077ml
Type: Automatic Dispenser And Gyroscopic Mixer Mixing Time: 45 Seconds To 9 Mins 45 Seconds
Mixing Direction: Clockwisely And Anti-clockwisely Rotating Mixer Suitable Can Height: 95-410mm
High Light:

Piston Pump Emulsion Paint Mixing Machine

,

0.25L/Min Emulsion Paint Mixing Machine

,

Wall Paint Tinter Machine

Emulsion paint mixing machine and wall paint tinter machine



Brief introduction



The YJ-1A-16D dispensing system is not only precisely controls the dispensing of ingredients to provide excellent finished paint product repeatability from batch to batch, but also serve as a complete color management system.

The YJ-2A-03 Automatic clamping mixer is one of the most advanced gyroscopic mixers on the market. With an intelligent control system manages speed and time according to configurable parameters, its main function is to mix in the most effective and proper way for a wide selection of products, coming in various types of can materials and sizes.

Piston pump Emulsion Paint Tinting and Mixing Machine Wall Paint Tinter Machine 0.25L/min




Features




Software Compability

  • Customer can provide us formula table in Excel format, we help to import the formula data into our tinting system.
  • Our software use the same Flink.dat file as CPS/Hero/Lenteq/ Innovatint and Formula.txt file as LARGOTINT, TECMEC , it’s compatible with worldwide major color software.



User-friendly Operation

Automatic tinting machine YJ-1A-16D

  • Clean nozzle automatically and manually to prevent nozzles blocking.
  • Reduces colorant build-up by automatic programmable stirring of colorants
  • Simple electrical system for easy maintainance.
  • The rolling brush will clean seal ring of nozzle automatically.
  • Adjustable dispensing speed for each colorant.
  • Low refilling height
  • Upper canister area can be opened


Automatic gyro mixer YJ-2A-03:



  • The LCD can display in Chinese and English. It can show each phase of the mixing process clearly.
  • Extractable lower clamping plate , load and unload can conveniently.
  • Automatic repositioning of the clamping plates, eliminates unnecessary operations
  • There are wheels and feet at bottom of the mixer machine, convenient to move the mixer.
  • Mixing speed can vary in function of weight and can shape



Satisfied Mixing Effect

  • Rotation and revolution go simultaneously during mixing.
  • Single-directional and bi-directional rotating for option, mixing fastly and thoroughly


Technical Data


AUTOMATIC DISPENSER FEATURES **
Colorant base compatibility Water-based
Dispensing technology  Piston pump
Dispensing flow  Volumetric sequential dispensing
Pump Capacity  50 ML
Canister quantity  Up to 16
Canister inner diameter  90mm
Canister volume  2.3L
Canister material  Plastic
Circuit flow rate  0,25 L per min

Minimum dispensed quantity

 0,077ml  (1/384 fl.oz. )



GYROSCOPIC MIXER FEATURES**
Clamping function Automatic
Plate positioning after mixing cycle Automatic
Mixing time From 45 sec to 9 mins 45 sec

Big can Mixing speed
(can height ≥220mm)

50 rpm - 100 rpm

Small can Mixing speed
(can height <220mm)

50 rpm - 150 rpm
Mixing direction Single-direction and bi-direction for option
CAN SPECS**
Type of cans Round / Square
Suitable can height 95mm - 410mm
Maximum can diameter 320mm
Maximun can weight 35 KG
POWER SUPPLY / MACHINE ENVIRONMENT**
Power supply -- Frequency Single phase 110 /220 V ±10% -- 50/60 HZ
Rated Power 750 W




Software Function Introduction



Tint Manager is a user Software Package developed for our range of Automatic Paint Dispenesr machines. The package will assist the user in carrying out the following operations:

  • Formula Query:search formula via Standard Formula ,My Formula,History Formula

  • Formula Management :add/Edit/Delete formula for “My Formula”

  • Colorant management: manage all the datas of colorant.
  • Debug: test each function of the machine manually;
  • Pump calibration: calibrate the pulse data of each canister pump;
  • Setup:set label print content,machine Setup data,software language and password

  • Reports:colorant Report and dispensing report


Piston pump Emulsion Paint Tinting and Mixing Machine Wall Paint Tinter Machine 0.25L/min
Piston pump Emulsion Paint Tinting and Mixing Machine Wall Paint Tinter Machine 0.25L/min
Piston pump Emulsion Paint Tinting and Mixing Machine Wall Paint Tinter Machine 0.25L/min

Piston pump Emulsion Paint Tinting and Mixing Machine Wall Paint Tinter Machine 0.25L/min
Piston pump Emulsion Paint Tinting and Mixing Machine Wall Paint Tinter Machine 0.25L/min
Piston pump Emulsion Paint Tinting and Mixing Machine Wall Paint Tinter Machine 0.25L/min






Our Service


  • Warranty Service: Warranty period is 12 months. Within guarantee period,we can help you judge the fault according to the failure phenomenon by E-mail. and send replacement part to you except for the man-made factors.
  • Training:You can send personnel to our factory for free training on the machine.
  • Inspection: You can send inspectors to our factory for inspection or we self-inspect following the technical requirements mentioned in contracts.
  • Testing of equipments: all our machines are tested before shipment. All machines are at its optimal state when shipped.
