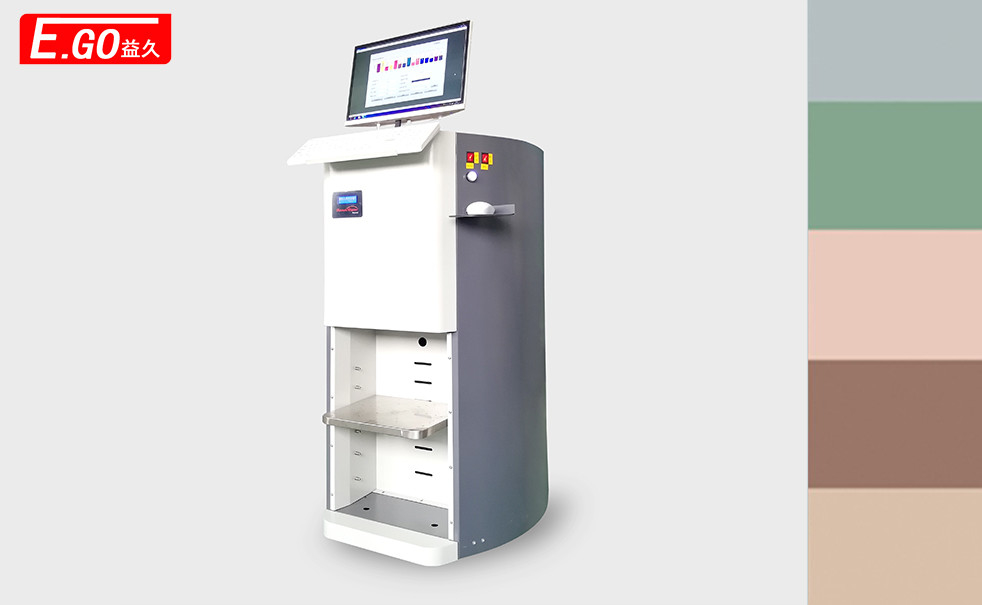

Sequential Automatic Emulsion Paint Tinter Computer Paint Mixing Machine 50ML

Sequential Automatic Emulsion Paint Tinter Computer Paint Mixing Machine 50ML
Sequential Automatic Emulsion Paint Tinter Computer Paint Mixing Machine 50ML

Large Image :  Sequential Automatic Emulsion Paint Tinter Computer Paint Mixing Machine 50ML

Product Details:
Place of Origin: CHINA
Brand Name: EGO
Certification: CE
Model Number: YJ-1A-16D
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: Carton , packing size: 740 (L) X 850(W) X 1320(H) MM , a 20ft can put in 20 sets
Delivery Time: 30 days
Payment Terms: TT
Supply Ability: 50 SETS PER MONTH
Contact Now
Detailed Product Description
Application Range:: Water Based Colorants Dispensing Type:: Sequential
Canister Capacity:: 16 Plastic Canisters In 2.3L Maximal Dispensing At One Time:: 50 ML
Flow Rate:: 250ML Accuracy:: 1/384 Y Or 0.077 ML
Machine Size: 665(L)*750(W)*1210(H) MM Net Weight: 112KG
High Light:

Sequential Emulsion Paint Tinter

,

Computer Emulsion Paint Tinter

,

50ML Computer Paint Mixing Machine

Water-based emulsion paint colorant of tinter machine with tinting system







Brief introduction



Sequential Automatic Emulsion Paint Tinter Computer Paint Mixing Machine 50ML 0
  • The YJ-1A-16D is one of the most economical automatic dispenser on the market. It was designed to meet high standards for accuracy, repeatability. It’s an ideal automatic dispensing solution for stores where low to medium decorative paint volumes are tinted, helping to reduce mistints and eliminate waste.

  • This dispensing system is not only precisely controls the dispensing of ingredients to provide excellent finished paint product repeatability from batch to batch, but also serve as a complete color management system.




Features

Software Compability

  • Customer can provide us formula table in Excel format, we help to import the formula data into our tinting system.
  • Our software use the same Flink.dat file as CPS/Hero/Lenteq/ Innovatint and Formula.txt file as LARGOTINT, TECMEC , it’s compatible with worldwide major color software.



Reliability & Durable

  • Iron rotating table and floor stander
  • Ceramic valve, accurate, corrosion resistant and good sealing.
  • Durable and corrosion-resistant 304 stainless steel canisters and pump cylinders
  • Piston pump ensure unmatched precision.



User-friendly Operation

  • Automatically and manually nozzle cleaning, prevent nozzles from blocking.
  • Automatic programmable stirring of colorants reduces colorant build-up
  • Simple electrical system in the front , easy to maintain.
  • The rolling brush will clean seal ring of nozzle automatically.
  • Adjustable dispensing speed for each colorant.
  • Low refilling height
  • Upper canister area can be opened



Technical Data

BASE DISPENSER FEATURES **
Colorant base compatibility Water-based
Valve seal ring type Silicone
Dispensing technology Piston pump
Dispensing flow Volumetric sequential dispensing
Pump Capacity 50 ML
Canister configurations Up to 16
Canister inner diameter 90mm
Canister capacity 2.3L
Canister material Plastic
Circuit flow rate 0,25 L/min
Minimum dispensed quantity 1/384 fl.oz. (0,077ml)
CAN TABLE SIZE **
Length 350 MM
Depth 310 MM
Maximum can height 570 MM
POWER SUPPLY / MACHINE ENVIRONMENT **
Power supply -- Frequency Single phase AC 110 / 220 V ±10% -- 50 / 60 HZ
Rated power 150 W
DIMENSIONS **
Machine Size 665 (L) X 750(W) X 1210(H) MM
Packing Size 740 (L) X 850(W) X 1320(H) MM
Footprint 0,50 m2
WEIGHT **
Machine Weight (with 16 canisters) 112 KG
Gross Weight (with 16 canisters) 127 KG
LOADING QUANTITY ** 21 sets / 20" Container
PACKING ** Carton
CERTIFICATE** CE








Software Function Introduction





Sequential Automatic Emulsion Paint Tinter Computer Paint Mixing Machine 50ML 1

Sequential Automatic Emulsion Paint Tinter Computer Paint Mixing Machine 50ML 2



Sequential Automatic Emulsion Paint Tinter Computer Paint Mixing Machine 50ML 3

Sequential Automatic Emulsion Paint Tinter Computer Paint Mixing Machine 50ML 4

Sequential Automatic Emulsion Paint Tinter Computer Paint Mixing Machine 50ML 5





Tint Manager is a user Software Package developed for our range of Automatic Paint Dispenesr machines. The package will assist the user in carrying out the following operations:

  • Formula Query:search formula via Standard Formula ,My Formula,History Formula

  • Formula Management :add/Edit/Delete formula for “My Formula”

  • Colorant management: manage all the datas of colorant.
  • Debug: test each function of the machine manually;
  • Pump calibration: calibrate the pulse data of each canister pump;

  • Setup:set label print content,machine Setup data,software language and password

  • Reports:colorant Report and dispensing report





Our Service

  • Warranty Service: Warranty period is 12 months. Within guarantee period,we can help you judge the fault according to the failure phenomenon by E-mail. and send replacement part to you except for the man-made factors.
  • Training:You can send personnel to our factory for free training on the machine.
  • Inspection: You can send inspectors to our factory for inspection or we self-inspect following the technical requirements mentioned in contracts.
  • Testing of equipments: all our machines are tested before shipment. All machines are at its optimal state when shipped.
