Semi Automatic Colorant Manual Paint Dispenser 110V/220V with double pump

Semi Automatic Colorant Manual Paint Dispenser 110V/220V with double pump
Semi Automatic Colorant Manual Paint Dispenser 110V/220V with double pump

Large Image :  Semi Automatic Colorant Manual Paint Dispenser 110V/220V with double pump

Product Details:
Place of Origin: CHINA
Brand Name: YIJIU
Certification: CE
Model Number: YJ-1M
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: PLYWOOD CASE
Delivery Time: Depend on order quantity
Supply Ability: 50 SETS PER MONTH
Detailed Product Description
Application Range: Water Based, Universal Colorant Canister: Plastic Canister In 2.0L
Maximal Dispensing At One Time: 60 ML Accuracy: 1/384Y≈0.077ml
Rated Voltage: 110V/220V±10% , 60W Net Weight: 58Kg (with 16 Canisters)
High Light:

Double Pump Manual Paint Dispenser

,

110V Manual Paint Dispenser

,

220V manual colorant dispenser





Semi - automatic paint dispenser , manually colorant dispensing machine





Features


1. Its double-pump and double-gauge design makes a high precision

2. Automatic time stirring prevent colorant from subsiding.

3. High-quality ceramic valves can solve the leaking problem

4. Automatic colorant mixing (5 mins every 4 hours, if need special requirement, please contact us)

5. Min / Max dispensing volume per time: 0.077 ml (1/384 Oz ) / 60 ml (2 Oz)



Technical Data


Canister Capacity (plastic canister) 2.0L,(stainless steel canister)2.3L
Maximal single Dispensing 60 ml
Accuracy 1/384 Y or 0.077ml
Net Weight  (12 cans) 51KG
Net Weight (16 cans) 58KG
Machine Size  720(l)*720(w)*1240(h)mm--12 cans

860(l)*860(w)*1240(h)mm--16 cans

Rated power  40W / 60W
Gross Weight (12 cans) 89KG, (16 cans) 102KG.
Packing Size

920(l)*570(w)*750(h)mm--12 cans

920(l)*755(w)*735(h)mm--16 cans

Packing way  plywood case




Options:

Gauge qty single laser gauge or double adhesive sticker gauge;
Gauge unit ml, 1Y=29.574ml, 1Y=31.25ml

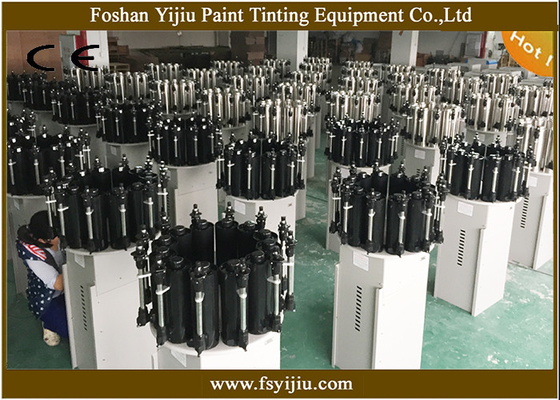

Sample show


Semi Automatic Colorant Manual Paint Dispenser 110V/220V with double pump 0



Manual paint dispneser machine FAQ


1. What's the scale/gauge rule?

three options:

  • 60ml (unit: 1ml, 0.1ml)
  • 1Y=29.574ml (unit : 1/48 , 1/384 US oz)
  • 1Y=29.574ml (unit : 1/64 , 1/384 US oz)



2. Do you make the manual dispenser with 24 or 32 canisters?
Normally not, but if the order is big like one hundred sets, please contact us!



3. Can I only order the upper part, no need the floor stander?

Yes, you can!



4.Can you make my logo onto the machine?

Yes !

5. What's the accuracy (minimum dispensing )?
0.077ml or 1/384Y



6. What's the color of the canisters?

black or white can be chose


7. Can it stirring to prevent the clorant from subsiding?

Yes! it can. The program was set automatically stirring every four hours for five minutes to prevent the colorant to subside, you can also press the button to stirring whenever you want.







Our Service


  1. Training:You can send personnel to our factory for free training on the machine.
  2. Inspection: You can send inspectors to our factory for inspection or we self-inspect following the technical requirements mentioned in contracts.
  3. Testing of equipments: all our machines are tested before shipment. All machines are at its optimal state when shipped.
  4. Warranty Service: Warranty period is 12 months. Within guarantee period,we can help you judge the fault according to the failure phenomenon by E-mail. and send replacement part to you except for the man-made factors.



Company Profile


Foshan YiJiu Paint Tinting Equipment Co., Ltd. was established in 2010. locates in Shunde ,China. which is widely famous for its developed manufacturing business. We are specialized in paint tinting and mixing equipments, collect R&D, manufacturing, sales and after sales service together.



In line with reliable, sincere, reciprocal, mutually beneficial, YiJiu Co. have been and will keep provides high quality, high accuracy, high cost-effective paint equipments to all our customers. Thanks to the know-how of our technicians and the well trained administrative staffs. we are able to offer considerate and responsible service.



We have wide connections with wholesalers and retailers all over the world. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
