Product Details:
Payment & Shipping Terms:
|
| Application Range: | Water Based, Solvent Based, Universal Colorant | Canister: | Stainless Steel Canister In 2.0L |
|---|---|---|---|
| Maximal Dispensing At One Time: | 60 ML | Accuracy: | 1/384Y≈0.077ml |
| Rated Voltage: | 110V/220V±10% | Canisters Quantity: | 12 Or 16 |
| High Light: | 16 Canisters Paint Tint Dispenser,Manual Paint Tint Dispenser,16 Canisters manual paint colorant dispenser |
||
Manual paint tint dispenser , manual dispensers for water based colorant
Features
|
2. Automatic time stirring prevent colorant from subsiding. 3. High-quality ceramic valves can solve the leaking problem 4. Automatic colorant mixing (5 mins every 4 hours, if need special requirement, please contact us) 5. Min / Max dispensing volume per time: 0.077 ml (1/384 Oz ) / 60 ml (2 Oz) |
Technical Data
| Canister Capacity | (plastic canister) 2.0L,(stainless steel canister)2.3L |
| Maximal single Dispensing | 60 ml |
| Accuracy | 1/384 Y or 0.077ml |
| Net Weight | (12 cans) 51KG |
| Net Weight | (16 cans) 58KG |
| Machine Size | 720(l)*720(w)*1240(h)mm--12 cans
860(l)*860(w)*1240(h)mm--16 cans |
| Rated power | 40W / 60W |
| Gross Weight | (12 cans) 89KG, (16 cans) 102KG. |
| Packing Size |
920(l)*570(w)*750(h)mm--12 cans 920(l)*755(w)*735(h)mm--16 cans |
| Packing way | plywood case |
Options:
| Gauge qty | single laser gauge or double adhesive sticker gauge; |
| Gauge unit | ml, 1Y=29.574ml, 1Y=31.25ml |

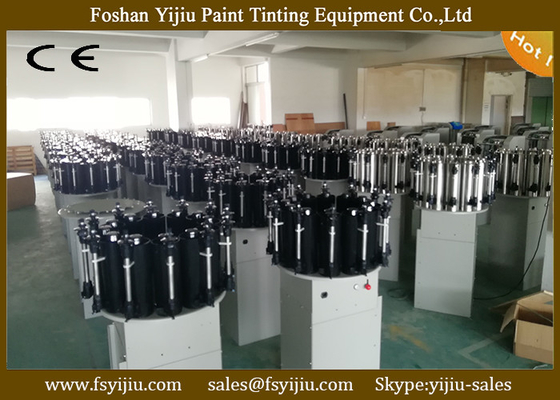

Sample show
Manual paint dispneser machine FAQ
1. Do you make the manual dispenser with 24 or 32 canisters?
Normally not, but if the order is big like one hundred sets, please contact us!
2. Can I only order the upper part, no need the floor stander?
Yes, you can!
3.Can you make my logo onto the machine?
Yes !
3. What's the accuracy (minimum dispensing )?
0.077ml or 1/384Y
4. What's the color of the canisters?
black or white can be chose
5. Can it stirring to prevent the clorant from subsiding?
Yes! it can. The program was set automatically stirring every four hours for five minutes to prevent the colorant to subside, you can also press the button to stirring whenever you want.
6. What's the scale/gauge rule?
three options:
