|Application Range::||Water Based, Solvent Based, Univeral Colorants||Dispensing Type::||Sequential|
|Canister Capacity::||16 Stainless Steel Canisters In 2.3L||Maximal Dispensing At One Time::||50 ML|
|Flow Rate::||0.25 L||Accuracy::||1/384 Y Or 0.077 ML|
0.25L paint tinting equipment,
Adjustable colour tinting machine,
0.25L color tinting machine

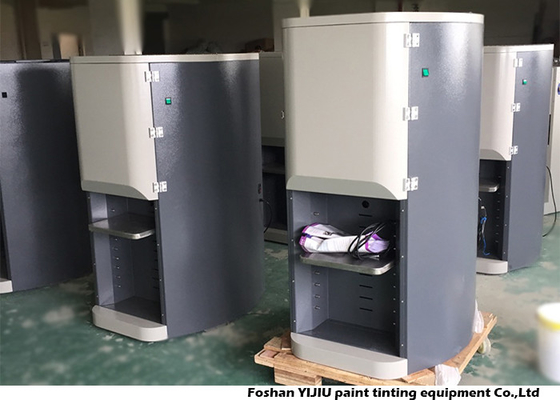

Automated paint color tinting machine , tinting equipment for water based paint
1. Ceramic valve structure, with good corrosion resistance and good sealing,stable and reliable.The undispensed nozzle will dispense a little colorant in a specified time to keep the colorant from drying,which can effectively prevent the nozzle from blocking.Automatic stirring at set time, prevent the colorant inside canisters from subsidence.
2. Piston pump ensure you precise measurement,free of calibration life-long. Simple electrical system,easy to maintain. The rolling brush will clean seal ring of nozzle automatically.
3. Adjustable upward speed and dispensing speed of every colorant.Driver software use the same Flink.dat file as CPS/Hero/Lenteq,and Formula.txt file as TECMEC,it’s compatible with worldwide major color software.
The dispensing systme is not only precisely controls the dispensing of ingredients to provide excellent finished paint product repeatability from batch to batch, but also can serve as a complete inventory management system.
The system handles everything from formula storage. Since it dispenses by piston pump, any desired batch size is precisely dispensed as needed. With software modules included for raw material (colorants) and finished product inventory. It is the simple to operate and easy to maintain.
|Maximal Dispensing at one time||50 ml|
|Accuracy||1/384 Y or 0.077 ml|
|Canister Capacity||(stainless cans)16 canisters in 2.3L|
|Rated Voltage||110V/220V±10% 50HZ/60HZ|
Automatic dispenser machine FAQ
1. How many canisters?
12 , 14 , 16 , 24 caniters for option.
2. Can I use our own color software?
-YIJIU software can read Flink.dat file ( which is the formula file created by CPS / Hero / Lenteq ) and dispense according to the data of Flink.dat file.
- If your color software create other formula file rather than the Flink.dat file, you can send to us for checking if we can make our YIJIU software to read it.
-If you have no color software, you can manage the formula data in YIJIU software directly.
3. Which the dispensing accuracy?
1/384Y or 0.077ml
4.What' the dispensing speed?
0.25L per min
5. Which is the maximum weight , volume and sizes of pails can be placed into the dispenser machine table.
The maximum diameter of the bottom pail:340mm
The maximum height of the pail: 490mm
within above size of diameter and height will be OK.
6. What's the weight of the machine?
6. What's the packing size for shipping cost?
|Machine Size||805(L)*710(W)*1230(H) MM|
|Packing Size||846(L)*758(W)*1398(H) MM|
