Product Details:
Payment & Shipping Terms:
|
| Application Range: | Water Based, Solvent Based, Universal Colorant | Canister: | POM Plastic Canister In 2.0L |
|---|---|---|---|
| Maximal Dispensing At One Time: | 60ML | Accuracy: | 1/384Y≈0.077ml |
| Rated Voltage: | 110V/220V±10% | Certification: | CE |
| High Light: | POM Canister Paint Tint Machine,220V Paint Tint Machine,POM Canister manual tint dispenser |
||

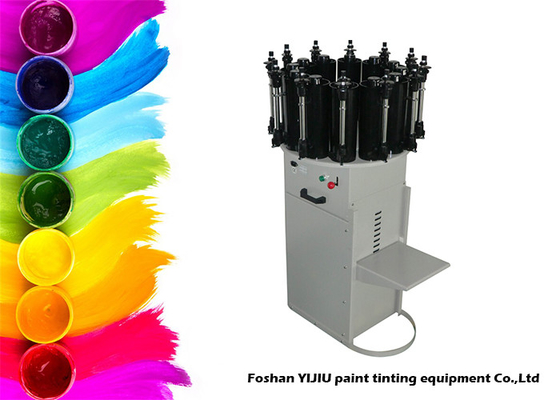

Manually paint colorant dispenser , paint dispenser machines
Features
1. Patented laser gauge for option, assures ever clear calibration on the gauge. You don't need to worry about the peeling off of adhesive gauge stickers.
2. The pump body can be disassembled easily and quickly, for easy maintenance and cleaning. In set torsion spring can close the nozzle automatically, which avoids the drying of colorants.
3. Canisters can be set evenly in same distance, neat and nice looking.The mold stretch thermoformed iron ensures the durability of rotating table that supports the canisters.
Technical Data
| Canister Capacity | (plastic canister) 2.3L,(stainless steel canister)2.5L |
| Maximal single Dispensing | 60 ml |
| Accuracy | 1/384 Y or 0.077ml |
| Power Supply/ Rated Power | 220V AC / 110V/AC 40W or 60W |
| Net Weight | (12 cans) 51KG, (16 cans) 58KG. |
| Gross Weight | (12 cans) 89KG, (16 cans) 102KG. |
| Machine Size |
720(l)*720(w)*1240(h)mm--12 cans 860(l)*860(w)*1240(h)mm--16 cans |
| Packing Size |
920(l)*570(w)*750(h)mm--12 cans 920(l)*755(w)*735(h)mm--16 cans |
Sample show
Options:
Gauge qty: single laser gauge or double adhesive sticker gauge;
Gauge unit: ml, 1Y=29.574ml, 1Y=31.25ml
Canister qty: 12/16 cans.
Manual paint dispneser machine FAQ
1. How many canisters?
12 , 16 for option.
2. Which the dispensing accuracy?
1/384Y or 0.077ml
3. What's the volum of the canisters?
- Plastic canister : 2.0L
- Stainless steel canister : 2.3L
4. What's your after sales service provided?
One year warranty and free spare parts provided
5. What's the scale/gauge rule?
three options:
a. 60ml (unit: 1ml, 0.1ml)
b. 1Y=29.574ml (unit : 1/48 , 1/384 US oz)
c. 1Y=29.574ml (unit : 1/64 , 1/384 US oz)
Our Service
Inspection: You can send inspectors to our factory for inspection or we self-inspect following the technical requirements mentioned in contracts.
Testing of equipments: all our machines are tested before shipment. All machines are at its optimal state when shipped.
Warranty Service: Warranty period is 12 months. Within guarantee period,we can help you judge the fault according to the failure phenomenon by E-mail. and send replacement part to you except for the man-made factors.
Training: You can send personnel to our factory for free training on the machine.
