|Shaking Time:||1-9min||Shaking Speed:||710 Times/min|
|Acceptable Can Height:||80-410mm||Acceptable Can Bottom Size:||350(L)*350(W) Mm|
|Net Weight:||221.5KG||Gross Weigth:||259KG|

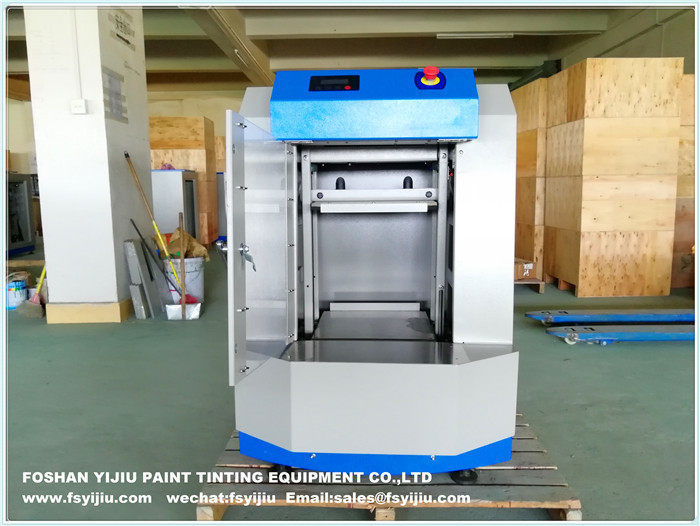

Automated Paint Mixing Machine,
9min Paint Mixing Machine,
1 Gallon Paint Shaker Electric
Automatic asphalt mixing machine , intelligent clamping vibrating paint shaker
Control panel introduction
T1 button (1 min button): press this button, the clamping plate automatically clamps the canister, and finish appointed 1 minute mixing.
T2 button(3 min button): press this button, the clamping plate automatically clamps the canister, and finish appointed 3 minutes mixing.
T3 button(5 min button): press this button, the clamping plate automatically clamps the canister, and finish appointed 5 minutes mixing.
T1+T2: Press T1+T2 at the same time , clamping plate automatically clamps the canister, and finish appointed 4 minutes time mixing.
T1+T3: Press T1+T3 at the same time , clamping plate automatically clamps the canister, and finish appointed 6 minutes time mixing.
T2+T3: Press T2+T3 at the same time , clamping plate automatically clamps the canister, and finish appointed 8 minutes time mixing.
T1+T2+T3: Press T1+T2+T3 at the same time , clamping plate automatically clamps the canister, and finish appointed 9 minutes time mixing.
Button (Stop, lift button) :
A). When machine is in the state of "Mixing" or "Clamping", LCD shows "Mixing" or "Clamping". At this time, press this button, machine will stop mixing or clamping and lift the clamping plate.
B). When machine is in the "ready" state, LCD shows "Ready". At this time, press this button, the clamping plate will lift up, and stop when you release the button.
Automatic clamp and adjustable pressure to bear on the can according to the can size, will not squish or stave the can.
It’s suitable to 0.5L-20L all kinds of can/barrel, max load weight is 30kg.
Easy operation and few maintainence: with PLC microcomputer control, can set the shaking time freely by the “T1”“T2” “T3” time key, the longest time can be set is 9 mins.
High speed and thoroughly mixing by up and down continuous multi-shake movement.
Low noise and high safety.
Chinese and english interface on the control panel for easy operation.
Large door with front roller for easy can loading.
Time of Mixing: 1-9min
Size of Mixing can: 0.5L~20L
Maximum weight of mixing can: 30KG
Suitable can height: 80~410mm
Suitable can bottom size:350(L)*350(W) mm
Power Supply: 220V/110V
Rated Power: 750W
Net Weight: 223KG
Gross Weight: 259KG
Machine Size: 740(l)*800(w)*1070(h)mm
Packing Size: 770(l)*840(w)*1210(h)mm
