220V Gyro Manual Paint Mixer Color Mixing Machine For Coating And Ink

Certification
China FOSHAN EGO TINTING CO.,LTD certification
China FOSHAN EGO TINTING CO.,LTD certification
I'm Online Chat Now

220V Gyro Manual Paint Mixer Color Mixing Machine For Coating And Ink

220V Gyro Manual Paint Mixer Color Mixing Machine For Coating And Ink
220V Gyro Manual Paint Mixer Color Mixing Machine For Coating And Ink

Large Image :  220V Gyro Manual Paint Mixer Color Mixing Machine For Coating And Ink

Product Details:
Place of Origin: CHINA
Brand Name: YIJIU
Certification: CE
Model Number: YJ-2M-02
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: PLYWOOD CASE
Payment Terms: L/C, T/T
Supply Ability: 50 SETS PER MONTH
Detailed Product Description
Time Of Mixing:: 15s-9min45s Acceptable Can Weight:: 1-35KG
Acceptable Can Diameter Size:: Maximum 320mm Acceptable Can Height:: 80-380mm
Speed Of Mixing:: Adjustable(80r/min--150r/min) Rated Voltage:: 110V/220V±10%
Net Weight: 180KG Gross Weight: 240KG
High Light:

Gyro Manual Paint Mixer

,

220V Manual Paint Mixer

,

Gyro paint colour mixing machine





Manual paint gyro mixer , color mixing machine for paint, coating ,ink , chemicals liquid

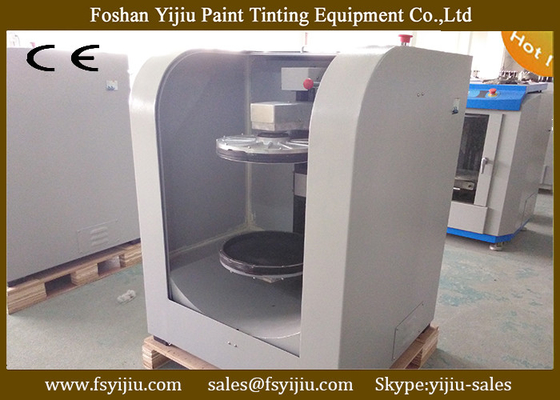

220V Gyro Manual Paint Mixer Color Mixing Machine For Coating And Ink 0

Brief Introduction:

The YIJIU manual clamping gyroscopic mixer YJ-2M-01 is works on the theory that the table revolve around the shaft meanwhile rotate on their axes with the character of high-efficiency , high-speed . It is suitble to big package and high viscosity chemical liquids mixing .

Application:
Chemical liquids : paint colorant , coating , ink , glue , etc.



Technical Data

Time of Mixing 15s-9min45s
Size of Mixing can 1~20 L
Load of Mixing can 1~35 KG
Speed of Mixing 80r/min~ 150 r/min
Height of Mixing can 80~380 mm
Power Supply 110/220V±10%, 50HZ
Rated Power 750W









Feature


  • Stable, even and fast stirring.
  • Manual clamping and loosening the mixing can, easy to operate and maintain.
  • Lower clamping plate is movable, which ensures the easy "on and off" of the mixing can.
  • Rotation and revolution go simultaneously, 2 directions rotation,counterclockwise rotate then
  • Clockwise rotate,mix more evenly.
  • Electrode tube indicator,more convenient and clear





Mixer machine FAQ


1.Can it adjust time and speed?
Yes!
Time: 0-5 mins
Speed: two levels, low speed for big cans and high speed for small cans.

2. What's your after sales service provided?
One year warranty and free spare parts provided

3. What's the packing size for shipping cost?
Gross weight: 240kg, 810(L)*830(W)*1150(H)mm



4. What's the max mixing ability?
20L, 35 kg, 5 US gallon

5. Can it be used for other liquid except paint?
Yes, any liquid chemicals

6. Which types of drums can be used for mixer?
Round or Square both OK, but the upper and bottom should be flat.
