Sequential Paint Colorant Dispenser / Wall Paint Color Making Machines

China Sequential Paint Colorant Dispenser / Wall Paint Color Making Machines supplier

Large Image :  Sequential Paint Colorant Dispenser / Wall Paint Color Making Machines

Product Details:

Place of Origin: CHINA
Brand Name: YIJIU
Certification: CE
Model Number: YJ-1A-16D

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: PLYWOOD CASE
Delivery Time: 30 days
Payment Terms: TT
Supply Ability: 50 SETS PER MONTH
Contact Now
Detailed Product Description
Application:: Water Paint Dispensing Type:: Sequential
Canister Capacity:: 2.3L Maximal Dispensing At One Time:: 50 ML
Flow Rate:: 250ML Accuracy:: 1/384 Y Or 0.077 ML
Can Table Size: 35(L)*30(W)*54(H) CM Canister Quantity: 12 Or 16 Stainless Steel Canisters
Dispensing Difference: +/- 0.02ml Each Dispense



Wall paint color making machines , colorants dispenser for paint shops




Technical Data


Application Rangewater or oil colorants
DispensingSequential
Capacity piston pump50 ml
Dispensing amount per minute0.25L
Minimum dispensing1/384 Y or 0.077 ml
Qty of canister16 stainless cans
Canister Capacityeach 2.3L
Can table Size35(L)*30(W)*54(H) CM
Dispensing difference+/- 0.02ml each dispense
Power supply110V/ 220V±10%
Rated Power

150W



Brief introduction




  • The tinting systme is not only precisely controls the dispensing of ingredients to provide excellent finished paint product repeatability from batch to batch, but also can serve as a complete inventory management system.
  • Since it dispenses by piston pump, any desired batch size is precisely dispensed as needed.
  • The system handles everything from formula storage.With software modules included for raw material (colorants) and finished product inventory. It is the simple to operate and easy to maintain.

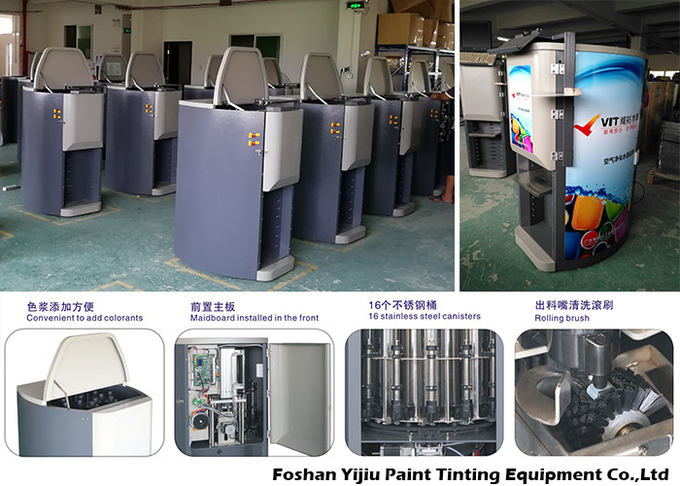

 Sequential Paint Colorant Dispenser / Wall Paint Color Making Machines


Features


  • Driver software use the same Flink.dat file as CPS/Hero/Lenteq,and Formula.txt file as TECMEC,it’s compatible with worldwide major color software.
  • The undispensed nozzle will dispense a little colorant in a specified time to keep the colorant from drying,which can effectively prevent the nozzle from blocking.
  • Automatic stirring at set time, prevent the colorant inside canisters from subsidence.Piston pump ensure you precise measurement,free of calibration life-long.
  • Ceramic valve structure, with good corrosion resistance and good sealing,stable and reliable.
  • The rolling brush will clean seal ring of nozzle automatically.
  • Simple electrical system,easy to maintain.
  • Adjustable upward speed and dispensing speed of every colorant.



Software Function Introduction


Driver 50 is a user Software Package developed for our range of Automatic Paint Dispenesr machines. The package will assist the user in carrying out the following operations:

  • Dispensing: Read the data from formula software and start dispensing;
  • Manual Dispensing: The dispensing under this function can be done without formula software. The user can choose any colorants from the dropdown list, decide the amount for each colorant, and dispense here.
  • Colorant management: manage all the datas of colorant.
  • Debug: test each function of the machine manually;
  • Pump calibration: calibrate the pulse data of each canister pump;
  • Presentation management: translate the display language into your local language.


Our Service


  • Training:You can send personnel to our factory for free training on the machine.
  • Inspection: You can send inspectors to our factory for inspection or we self-inspect following the technical requirements mentioned in contracts.
  • Testing of equipments: all our machines are tested before shipment. All machines are at its optimal state when shipped.



Warranty


Limited Warranty: We provide a one year warranty for each equipment. Within guarantee period, we can help you judge the fault according to the failure phenomenon via Internet way and send replacement part to you. If the fault has been caused by mis-used or abnormal conditions of operation, repairs will be billed at a normal cost in this case. An estimate will be submitted before repair work is started in case requested.
