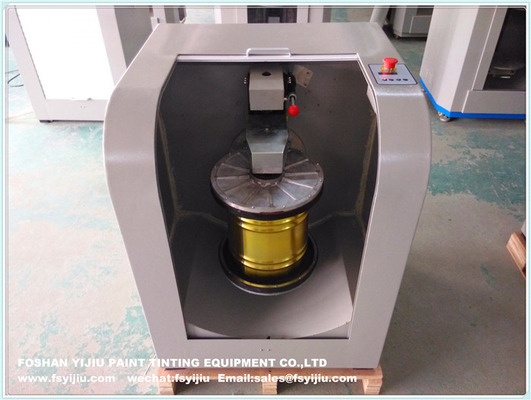

Manual Clamp Paint Color Making Machine Gyro Automated Paint Mixing Machine

Manual Clamp Paint Color Making Machine Gyro Automated Paint Mixing Machine
Manual Clamp Paint Color Making Machine Gyro Automated Paint Mixing Machine

Large Image :  Manual Clamp Paint Color Making Machine Gyro Automated Paint Mixing Machine

Product Details:
Place of Origin: CHINA
Brand Name: YIJIU
Certification: CE
Model Number: YJ-2M-02
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: PLYWOOD CASE
Payment Terms: L/C, T/T
Supply Ability: 50 SETS PER MONTH
Detailed Product Description
Time Of Mixing:: 15s-9min45s Acceptable Can Weight:: 1-35KG
Acceptable Can Diameter Size:: Maximum 320mm Acceptable Can Height:: 80-380mm
Speed Of Mixing:: Adjustable(80r/min--150r/min) Rated Voltage:: 110V/220V±10%
Frequency:: 50HZ/60HZ Rated Power:: 750W
High Light:

Manual Clamp Paint Color Making Machine

,

Gyro Paint Color Making Machine

,

Gyro Automated Paint Mixing Machine

Manual Clamp Paint Color Making Machine Gyro Automated Paint Mixing Machine 0



Manual clamp gyro mixer for glue, nail polish , enamel , maximum mixing 35 KGS









Brief Introduction


The YIJIU manual clamping gyroscopic mixer YJ-2M-01 is works on the theory that the table revolve around the shaft meanwhile rotate on their axes with the character of high-efficiency , high-speed . It is suitble to big package and high viscosity chemical liquids mixing .

Application:

  • Chemical liquids : paint colorant , coating , ink , glue , etc.





Feature


1. Stable, even and fast stirring.

2.  Manual clamping and loosening the mixing can, easy to operate and maintain.

3. Lower clamping plate is movable, which ensures the easy "on and off" of the mixing can.

4. Rotation and revolution go simultaneously, 2 directions rotation,counterclockwise rotate then

Clockwise rotate,mix more evenly.

5. Electrode tube indicator,more convenient and clear





Technical Data


  • Time of mixing: 15”~9’45”
  • Size of Mixing can: 1-20L
  • Load of Mixing can: 1-35KG
  • Speed of Mixing: 9 r/min-160 r/min
  • Height of Mixing can: 80-380mm
  • Power Supply: 220V +/- 10%, 60HZ
  • Rated Power: 750W Net Weight: 180KG



Net Weight 180KG
Gross Weight 240KG
Machine Size 780(l)*800(w)*1015(h)mm
Packing Size 810(l)*830(w)*1150(h)mm


Mixer machine FAQ



1. What's your after sales service provided?
One year warranty and free spare parts provided

2. What's the packing size for shipping cost?
Gross weight: 240kg, 810(L)*830(W)*1150(H)mm



3. What's the max mixing ability?
20L, 35 kg, 5 US gallon

4. Can it be used for other liquid except paint?
Yes, any liquid chemicals

5. Which types of drums can be used for mixer?
Round or Square both OK, but the upper and bottom should be flat.

6.Can it adjust time and speed?
Yes!
Time: 0-5 mins
Speed: two levels, low speed for big cans and high speed for small cans.
